How I Secured Internal Microservice Calls Without Passing JWTs

One of the more interesting problems I ran into while building a microservices system was this:

How should one internal service securely call another service on behalf of a user — without forwarding the user's JWT everywhere?

At first, this sounds simple.

But once scheduled jobs, async processing, and service-to-service communication enter the picture, the usual approaches start breaking down quickly.

---

The Architecture

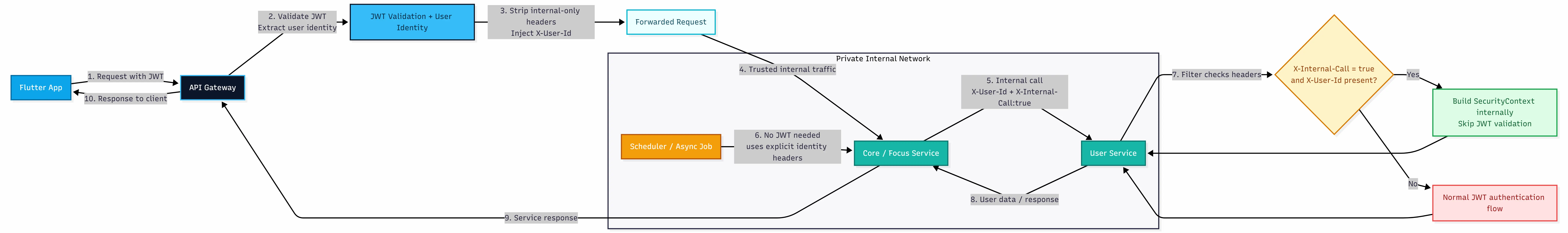

The request flow looked roughly like this:

Flutter App → API Gateway → Core Service → User Service

The API Gateway was responsible for:

• validating JWTs
• authenticating the request
• extracting the user ID

Once validated, the gateway injected the user identity into downstream requests.

Something like:

X-User-Id: abc123

The problem started when one internal service needed to call another internally.

For example:

Core Service → User Service

The core service needed user-specific data, but:

• it no longer had the original JWT
• the gateway had already consumed it
• scheduled tasks had no HTTP request context at all

That forced an important architectural decision.

---

The Naive Approach (And Why It's Dangerous)

The most obvious solution looks like this:

headers.set("X-User-Id", userId);

At first glance, it works.

But it creates a major security issue.

Any external caller could simply send:

X-User-Id: admin123

and impersonate another user.

Without proper trust validation, the entire system becomes vulnerable to header spoofing.

---

Why Forwarding JWTs Wasn't the Right Fit

Another common approach is forwarding JWTs between services.

That works in simple request chains, but it introduced multiple problems in this architecture.

Problem 1 — Scheduled Tasks

Schedulers and async jobs do not have:

• HTTP request context
• incoming JWTs
• request-scoped authentication

So there is nothing to forward.

---

Problem 2 — Tight Coupling

Forwarding JWTs forces every service to:

• understand JWT structure
• validate tokens
• depend on authentication details

That increases coupling between services unnecessarily.

---

Problem 3 — RequestContextHolder Issues

Using thread-local request storage works only inside the original request thread.

As soon as execution becomes:

• async
• scheduled
• event-driven

the context disappears.

---

The Approach I Ended Up Using

Instead of forwarding JWTs internally, I designed a lightweight internal trust protocol.

The idea was simple:

• external authentication happens only at the gateway
• internal services trust requests coming from inside the private network
• internal calls carry explicit identity headers

---

Caller Side

When one service calls another:

client.get()
    .uri("/users/intent")
    .header("X-User-Id", userId)
    .header("X-Internal-Call", "true")
    .retrieve()
    .body(...);

Two headers are sent:

---

Receiver Side

Inside the receiving service, the authentication filter checks:

String internalCall = request.getHeader("X-Internal-Call");
String internalUserId = request.getHeader("X-User-Id");

If both exist:

if ("true".equals(internalCall)
    && StringUtils.hasText(internalUserId)) {

    UsernamePasswordAuthenticationToken authentication =
        new UsernamePasswordAuthenticationToken(
            internalUserId,
            null,
            Collections.singletonList(
                new SimpleGrantedAuthority("ROLE_USER")
            )
        );

    SecurityContextHolder.getContext()
        .setAuthentication(authentication);

    filterChain.doFilter(request, response);
    return;
}

The service directly creates the SecurityContext internally and skips JWT validation completely.

For external requests, the normal JWT flow still applies.

---

Why This Is Not Spoofable

At first glance, this may look insecure.

Someone could ask:

"What stops external users from sending X-Internal-Call: true?"

The answer is network boundaries.

The architecture was designed so that:

• the API Gateway is the only public entry point
• internal services are not exposed publicly
• external traffic cannot directly reach downstream services

The gateway:

• validates JWTs
• injects X-User-Id
• strips internal-only headers from external traffic

The trust model becomes:

External → Gateway → Internal Services

not:

External → Internal Services

That distinction is critical.

The internal network itself becomes the trust boundary.

---

Why This Worked Better

Compared to forwarding JWTs, this approach had several advantages.

---

The Result

This approach made the system significantly cleaner.

The benefits:

• scheduled jobs could call services safely
• async workflows no longer depended on HTTP context
• services stayed loosely coupled
• authentication remained centralized at the gateway
• internal communication became simpler and faster

Most importantly:

the system stopped depending on request-scoped authentication everywhere.

---

The Bigger Engineering Lesson

A lot of microservice architectures overcomplicate internal authentication.

Not every service-to-service request needs full end-user JWT propagation.

If:

• your network is private
• your gateway is trusted
• internal services are isolated

then the network boundary itself becomes part of your security model.

That does not mean "trust everything internally."

It means:

• authenticate once at the edge
• validate boundaries properly
• keep internal communication lightweight

---

Final Thought

Good architecture is often about deciding where complexity should live.

In this case:

• authentication complexity stayed at the gateway
• internal services remained simple

That made the system:

• easier to scale
• easier to debug
• easier to extend into async and scheduled workflows

without turning every internal call into an authentication problem.
